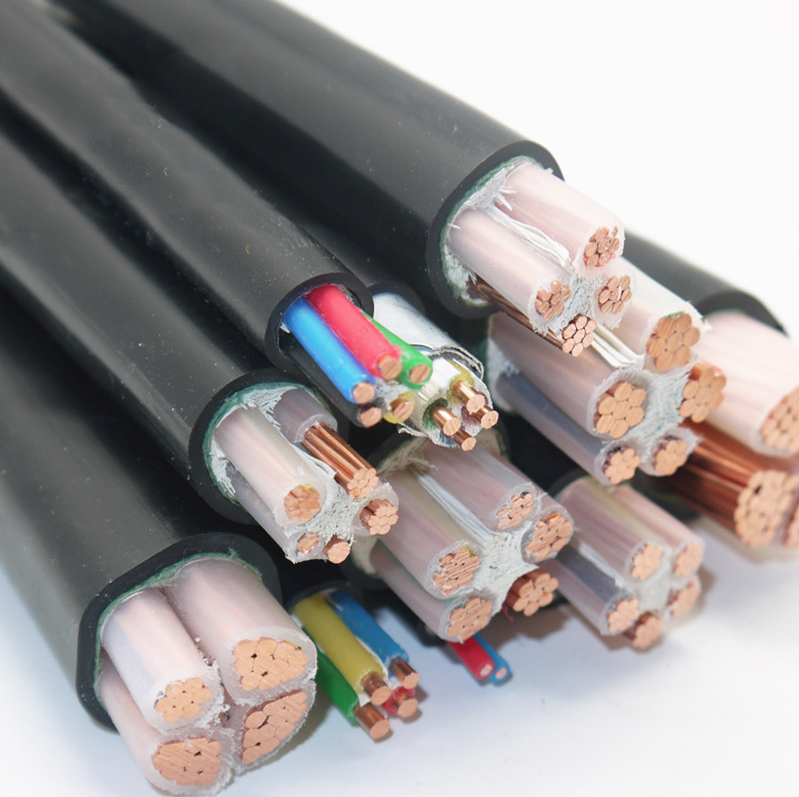

What Are the Common Faults of Low-Voltage Cables and How to Troubleshoot Them Quickly?
2025-12-26 From: Tianjin Huben Cable Co., Ltd. Browsing times:28
As the core carrier of power transmission in homes and small commercial premises, the operating status of low-voltage cables is directly related to electrical safety and power supply stability. In daily use, affected by various factors such as construction quality, service life, environmental impact, and overload operation, low-voltage cables will inevitably experience various faults. Minor faults may lead to local power outages and home appliances failing to work normally, while severe ones may cause safety accidents such as short-circuit fires and electric shock injuries. For ordinary homeowners and operation and maintenance personnel, understanding common fault types of low-voltage cables and mastering scientific rapid troubleshooting methods can help detect problems in time and reduce losses. This article details 5 common faults of low-voltage cables, disassembles the step-by-step troubleshooting process, and matches practical skills and preventive suggestions to provide a actionable low-voltage cable fault troubleshooting guide.

I. First, Understand: 5 Common Fault Types and Causes of Low-Voltage Cables
The occurrence of low-voltage cable faults is mostly related to "insulation damage, poor conductor contact, overload overheating, environmental erosion, and aging degradation". fault types have different performances and causes. Accurately identifying the fault type is the premise of rapid troubleshooting:
1. Short-Circuit Fault: The Most Dangerous High-Frequency Fault
A short-circuit fault refers to an abnormal conduction between cable conductors or between a conductor and the ground, which is manifested by an instantaneous trip, local heating of the cable, and even electric sparks. There are 3 main core causes: first, construction damage, such as the cable insulation layer being scratched by sharp tools during wiring, insulation cracking due to excessive bending, or poor fit of the insulation layer due to irregular joint production; second, insulation aging, excessive service life (generally more than 15 years), and long-term overload operation leading to carbonization, embrittlement and damage of the insulation layer; third, environmental erosion, in humid environments such as kitchens and bathrooms, moisture seeps into the insulation layer leading to decreased insulation performance, or acid-base corrosive gases, rodent and ant bites damage the insulation layer.
2. Leakage Fault: Strong Concealment and Great Safety Hazards
A leakage fault refers to the leakage of current to the ground or other conductors after the cable insulation layer is damaged. It is manifested by frequent tripping of the residual current device (RCD), a numb feeling when touching the outer shell of electrical appliances, and in some cases, no obvious intuitive symptoms, which is highly concealed. Common causes include: aging and damage of the insulation layer, moisture due to poor joint sealing, direct contact between the cable and wall metal components leading to wear, and substandard insulation materials of inferior cables. Especially in the rainy season and after bathroom renovation, the incidence of leakage faults will increase significantly.
3. Overload Overheating Fault: Long-Term Neglect Easily Triggers Chain Problems
An overload overheating fault refers to the conductor temperature rising when the current carried by the cable exceeds the rated current-carrying capacity, which is manifested by the cable sheath becoming hot, the socket panel heating, and the lights flickering and dimming. Long-term overload will further accelerate the aging of the insulation layer and even cause short circuits. The main causes are: first, improper selection, the cross-sectional size of the cable selected during renovation is too small to match the operating load of high-power home appliances such as air conditioners and electric water heaters; second, illegal electricity use, turning on multiple high-power devices at the same time, such as the simultaneous operation of induction cookers, microwave ovens and electric ovens in the kitchen, leading to excessive total line load; third, line aging, increased conductor resistance, and increased heat generation under the same current.
4. Poor Conductor Contact Fault: An Easily Overlooked "Hidden Fault"
Poor conductor contact mostly occurs at connection parts such as cable joints, terminals, switches and sockets. It is manifested by local voltage drop, inability to start electrical appliances normally, heating of connection parts, and even intermittent power outages. The main causes include: irregular joint production, such as loose conductor connection and insecure crimping; loose terminals, loose screws caused by long-term plugging and unplugging of electrical appliances; conductor oxidation, failure to perform anti-oxidation treatment at joints, and copper conductors oxidizing to form copper oxide, which increases contact resistance and leads to heating and poor contact.
5. Open-Circuit Fault: Mostly Related to External Damage and Aging
An open-circuit fault refers to the cable conductor being cut or broken inside the conductor, which is manifested by complete power outage in a specific area, inability to supply power to electrical appliances, and in some cases, temporary power supply when the cable is shaken. The main causes are: first, external damage, accidental cutting of cables during secondary renovation, wall drilling, and ground excavation; second, aging and breakage, long-term impact of alternating hot and cold on the cable leading to metal fatigue of the conductor, or conductor fusing due to overload heating; third, joint faults, metal breakage due to excessive crimping of conductors at joints, or joint oxidation and falling off.
II. Step-by-Step Operation: Rapid Troubleshooting Process for Low-Voltage Cable Faults (From Simple to Complex)
Fault troubleshooting should follow the principle of "first intuitive observation, then instrument detection, and finally positioning and repair", starting with simple and operable steps to avoid blind disassembly leading to expanded faults. The following is a standardized troubleshooting process suitable for homes and small venues:
Step 1: Safety Preparation to Eliminate Secondary Risks
Safety protection must be done before troubleshooting to avoid electric shock accidents: ① First, turn off the main power switch, pull down the residual current device, and confirm the power-off state with a voltage tester; ② Wear insulating gloves and insulating shoes to avoid direct contact with cable joints and metal components; ③ Prepare troubleshooting tools, including a multimeter, megohmmeter (shake meter, 500V specification is recommended), voltage tester, screwdriver, flashlight, marker pen, etc.; ④ Clean up debris in the troubleshooting area, especially away from flammable and materials, to ensure a safe operating space.
Step 2: Intuitive Observation to Initially Lock the Fault Range
Without professional instruments, the approximate fault range can be initially locked through "looking, touching, listening, and asking", which is suitable for ordinary homeowners to operate: Looking: Check the status of air switches and residual current devices in the main distribution box. If a circuit switch trips frequently, it is likely that there is a fault in the cable of that circuit; observe the cable appearance, focusing on the cable at joints, corner bends, kitchens, bathrooms and other humid areas, to see if there are signs of sheath damage, blackening, bulging, or water ingress; check if there are signs of burning or blackening and discoloration on socket panels and switches.
- Touching: In the power-off state, touch the cable joints, sockets, and switch housings with your hands to feel for abnormal heating (excluding residual temperature just after power-off). If the temperature of a certain part is significantly higher than other areas, there may be a poor contact or overload overheating fault.
- Listening: In the power-on state (excluding trip faults), carefully listen for "sizzling" discharge sounds at cable joints and inside the distribution box. If there is, there may be a leakage or poor contact fault; in some cases, the operating noise of electrical appliances will suddenly increase before a short circuit.
- Asking: Understand the scenario before the fault occurred, such as whether a high-power home appliance was just turned on, whether water leakage occurred, or whether renovation construction was carried out. This information can quickly narrow down the troubleshooting range. For example, if the air conditioner trips immediately after being turned on, it is likely that the air conditioner circuit cable is overloaded or there is a joint fault.
Step 3: Instrument Detection to Accurately Locate the Fault Point
After locking the approximate fault range through intuitive observation, use professional instruments for detection to accurately locate the fault point. Common instruments are multimeters and megohmmeters, which are simple and easy to operate:
1. Troubleshooting with a Multimeter: Suitable for Short-Circuit, Poor Contact, and Open-Circuit Faults
The multimeter needs to be adjusted to the "resistance gear" (marked as Ω), and an appropriate range should be selected (200Ω gear is generally selected for low-voltage cables):
- Troubleshooting short-circuit faults: Turn off the main power and all electrical appliances, remove the cable joints at both ends of the fault circuit, connect the two test leads of the multimeter to the live wire (L) and neutral wire (N) of the cable respectively. If the displayed resistance is close to 0Ω, it indicates a short circuit between the live wire and the neutral wire; then connect one of the test leads to the ground wire (PE), and test the resistance between the live wire and the ground wire, and between the neutral wire and the ground wire respectively. If it is close to 0Ω, it indicates a ground short circuit.
- Troubleshooting open-circuit faults: Connect the multimeter test leads to both ends of the same conductor of the cable respectively. If the displayed resistance is infinite ("1" or "OL"), it indicates that the conductor has an open circuit; if the resistance value is too large (more than twice the normal resistance of the cable of the same cross-section), it indicates poor contact or conductor oxidation.
Troubleshooting poor contact: Focus on testing the cable joints and the terminals of switches and sockets. Connect the test leads to the conductors on both sides of the terminal respectively. If the resistance value is unstable or too large, it indicates poor contact.
2. Troubleshooting with a Megohmmeter: Suitable for Leakage and Insulation Aging Faults
A megohmmeter is used to detect the insulation resistance of cables. Low insulation resistance is the core judgment basis for leakage and insulation aging. Attention should be paid during operation: turn off all electrical appliances and power supplies, connect one end of the megohmmeter to the cable conductor (live wire/neutral wire), and the other end to the cable sheath or ground wire. Shake the megohmmeter handle at a constant speed (rotating speed about 120 revolutions per minute), and read the value after 1 minute. For household 220V lowvoltage cables, the insulation resistance should not be less than 0.5MΩ. If the value is less than 0.5MΩ, it indicates that the insulation performance has decreased, and there is a leakage risk; if the value is close to 0Ω, it indicates that the insulation layer is severely damaged.
Step 4: Segmented Troubleshooting to Lock the Specific Fault Point
If the fault range is determined through the above steps but the specific fault point is not found, the "segmented troubleshooting method" can be adopted: divide the fault circuit cable into multiple segments according to "main distribution box - joint - room socket - home appliance", disconnect the connections between segments one by one, and test the resistance and insulation resistance of each segment respectively. The segment with abnormal resistance or low insulation resistance is the faulty segment. For example: to troubleshoot the fault of the living room lighting circuit, it can be divided into three segments: "main box to living room switch", "switch to lamp joint", and "internal wiring of the lamp". Testing them one by one can lock the faulty segment.
III. Targeted Treatment: Rapid Repair Suggestions for Faults
After finding the fault point, take targeted repair measures according to the fault type and severity. Minor faults can be handled by yourself, while complex faults are recommended to be entrusted to professional electricians:
1. Short-Circuit/Leakage Faults: Prioritize Repairing the Insulation Layer
If the local insulation layer is damaged (without damaging the conductor), first wipe the damaged area with anhydrous alcohol, let it dry, wrap it with insulating self-adhesive tape for 5-8 layers, and then wrap it with waterproof tape for reinforcement; if the damage is severe or the conductor is damaged, cut off the damaged part, re-make the joint (cold-shrink/heat-shrink joint), and ensure that the insulation layer fits tightly; if the insulation of the entire section of cable is aging, it is recommended to replace the entire section of cable to avoid secondary faults.
2. Poor Contact Faults: Reconnect + Anti-Oxidation Treatment
Poor contact at joints: After turning off the power, re-strip the conductor insulation layer (the stripping length matches the joint size), clean the oxide layer on the conductor surface, crimp it firmly with a matching crimping tool, and then wrap it with insulating tape; loose terminals: tighten the terminal screws, replace the terminal if the screw slips, and apply a small amount of anti-oxidation paste on the conductor surface; poor contact of switches and sockets: replace high-quality switches and sockets to ensure firm wiring.
3. Overload Overheating Faults: Capacity Expansion + Standardized Electricity Use
If the overload is caused by the cable cross-section being too small, replace the cable with a larger cross-section (such as replacing 2.5mm² with 4mm²), and set up a separate circuit for high-power equipment at the same time; if the overload is caused by illegal electricity use, standardize electricity use habits and avoid turning on multiple high-power equipment at the same time; if the heating is caused by cable aging, directly replace the aging cable.
4. Open-Circuit Faults: Reconnect or Replace the Cable
If it is a local open circuit caused by external force, cut off the open circuit part, re-crimp the joint and do a good job of insulation and sealing; if it is an internal aging and breakage of the conductor, it is recommended to replace the entire section of cable; if it is a breakage at the joint, re-make the joint to ensure tight crimping and in-place insulation.
IV. Key Reminders: 3 Troubleshooting Taboos + 4 Preventive Measures
1. 3 Troubleshooting Taboos to Avoid Expanded Risks
- Taboo 1: Troubleshooting without power-off or voltage testing. It is strictly forbidden to touch cable joints and conductors with electricity to avoid electric shock accidents;
- Taboo 2: Short-circuiting the residual current device or air switch with a wire to "force power on", which will cover up the fault and easily cause fires;
Taboo 3: Blindly disassembling and cutting unfamiliar cable lines may damage hidden lines and expand the fault range.
2. 4 Preventive Measures to Reduce Fault Occurrence
- Source Control: Select high-quality copper core cables that meet national standards (GB/T 5023-2008) during renovation to avoid inferior cables; entrust professional electricians for construction to ensure standardized wiring and standard joint production;
- Standardized Electricity Use: Avoid turning on multiple high-power devices for a long time, set up separate circuits for air conditioners, electric water heaters, etc., and do not pull private wires randomly;
Environmental Protection: In humid areas such as kitchens and bathrooms, select cables and joints with high waterproof grades and do a good job of sealing; regularly clean up debris around the cables to prevent rodent and ant bites;
Regular Inspection: Conduct at least 1 cable status inspection every year, focusing on joints and cables in humid areas, test the insulation resistance with a megohmmeter, and comprehensively replace old cables that have been used for more than 15 years.
V. When Is It Necessary to Entrust a Professional Electrician?
It is recommended to contact a professional electrician directly in the following 3 cases to avoid dangers caused by self-operation: ① The fault point cannot be found after multiple investigations, or the fault recurs (such as frequent trips, intermittent leakage); ② The fault involves hidden lines inside the wall and internal wiring of the main distribution box, which requires disassembly with professional tools; ③ The cable smokes, burns, has large-area insulation damage, or there is a suspected short-circuit fire risk. Professional electricians have complete protective equipment and professional testing instruments (such as cable fault locators), which can solve problems more safely and accurately.
