产品介绍

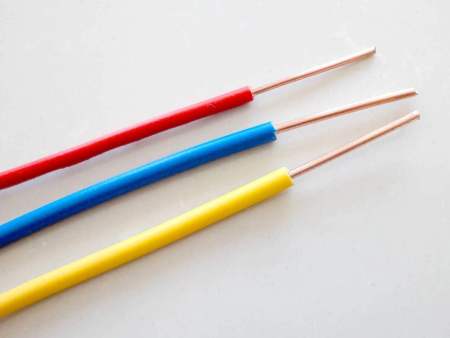

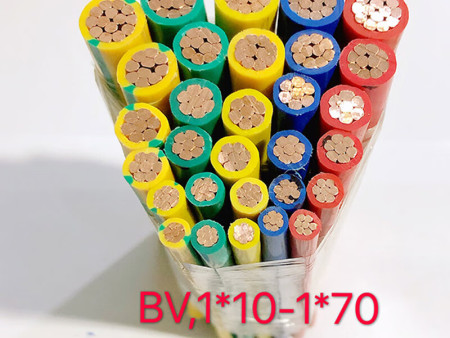

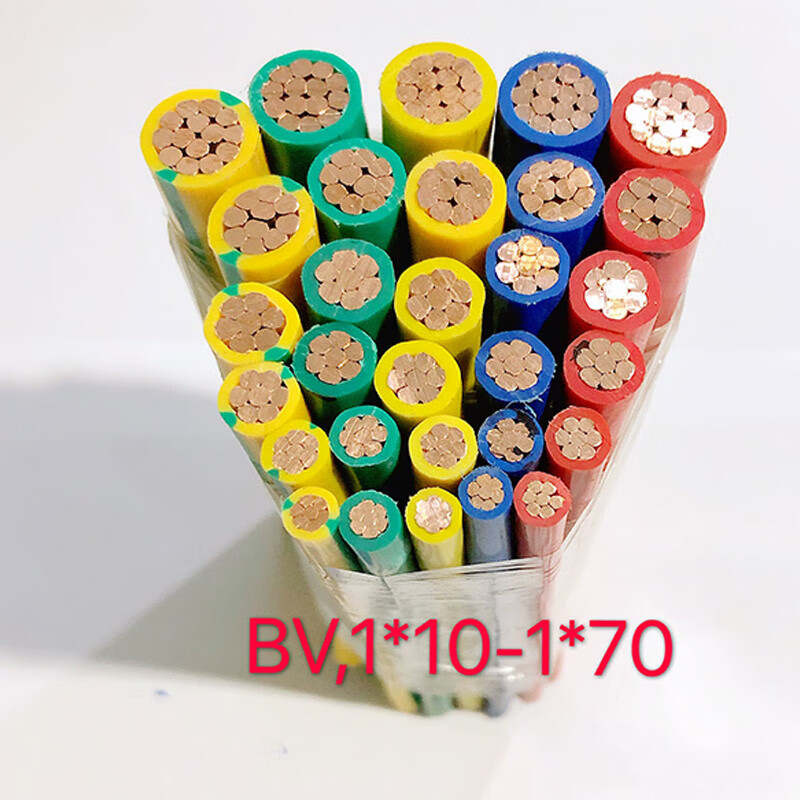

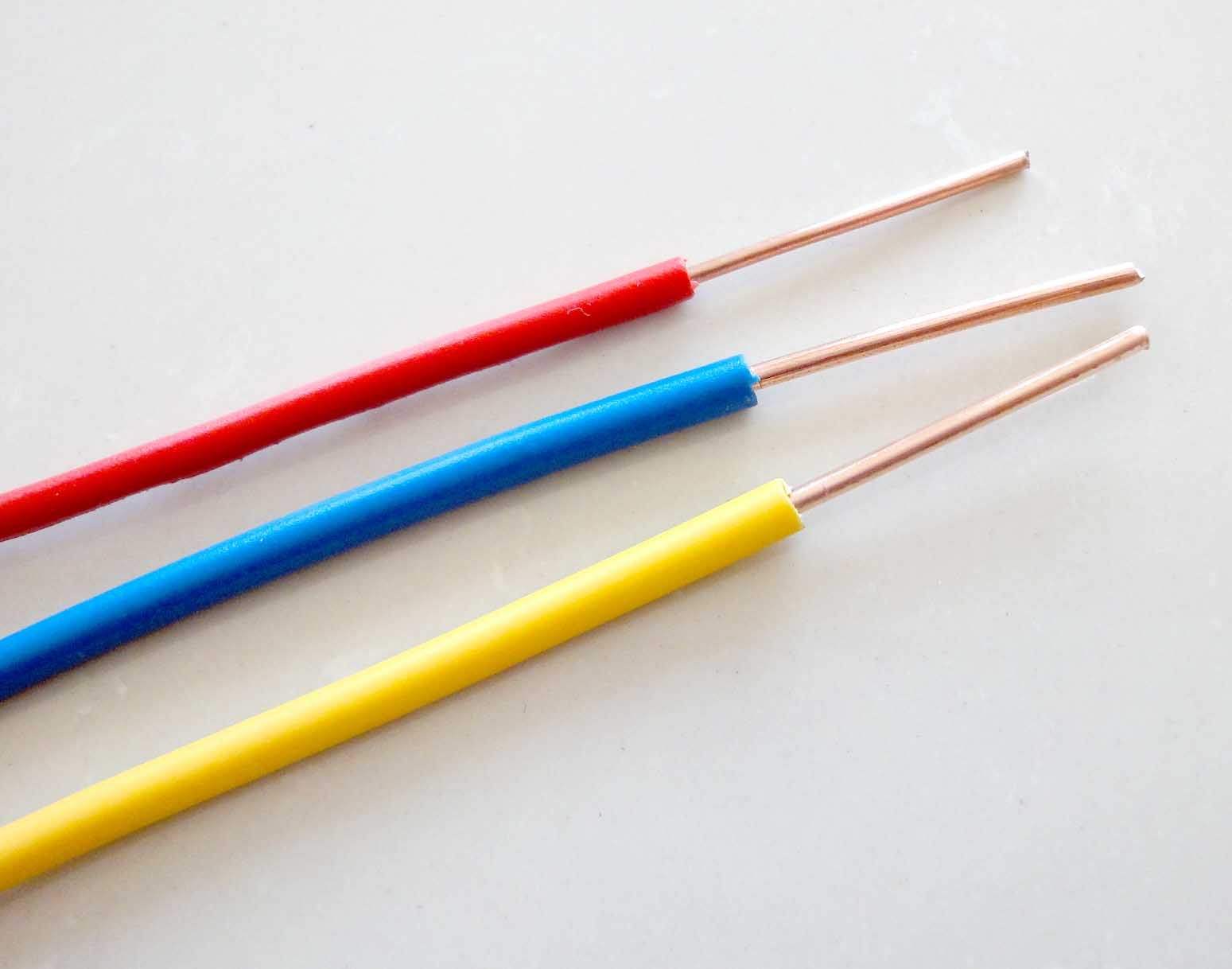

1.BV PVC Insulated Building Wire (Copper Conductor)
（1）Product Introduction
BV wire, fully known as Copper Core PVC Insulated Building Wire, is a classic choice for low-voltage fixed electrical installations. Its key feature is a solid copper conductor (distinguishing it from the stranded conductor of BVR wire).With a uniform rated voltage of 300/500V,a maximum operating temperature of 70°C，and a cross-sectional range from 0.5 mm² to 240 mm²,it is valued for its stable performance, high current-carrying capacity, cost-effectiveness, and ease of installation. This makes it a fundamental and widely used wire in global civil construction and industrial applications, especially in residential and commercial building wiring projects.
（2）Product Line Specifications & Models
model
specifications
conductor material
insulation material
BV
1²
COPPER
PVC
BV
1.5²
COPPER
PVC
BV
2.5²
COPPER
PVC
BV
4²
COPPER
PVC
BV
6²
COPPER
PVC
BV
10²
COPPER
PVC
BV
16²
COPPER
PVC
BV
25²
COPPER
PVC
BV
35²
COPPER
PVC
BV
50²
COPPER
PVC
