1. Product Introduction

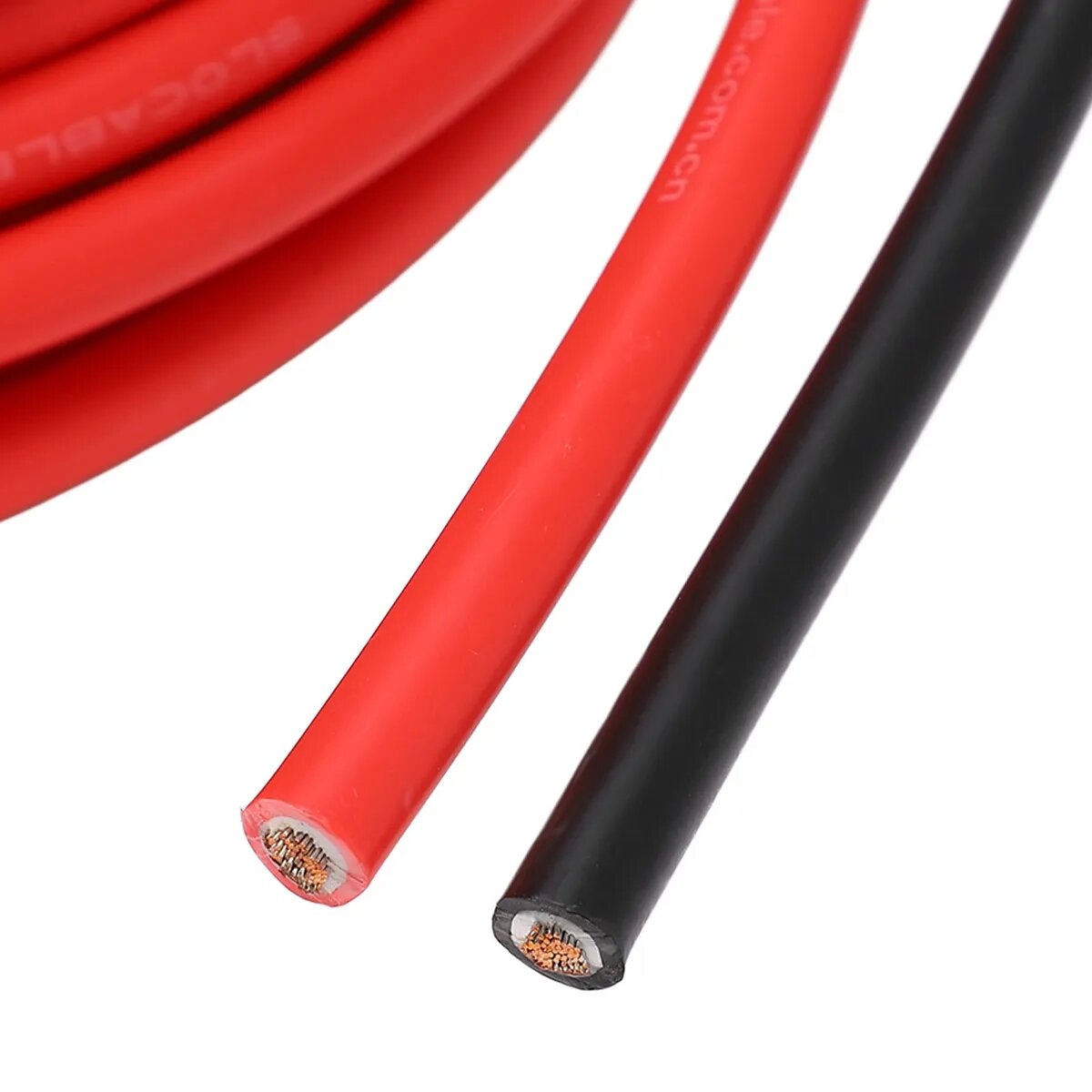

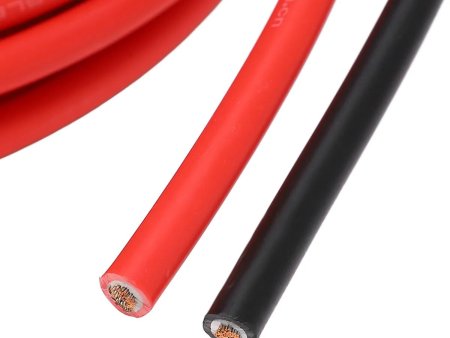

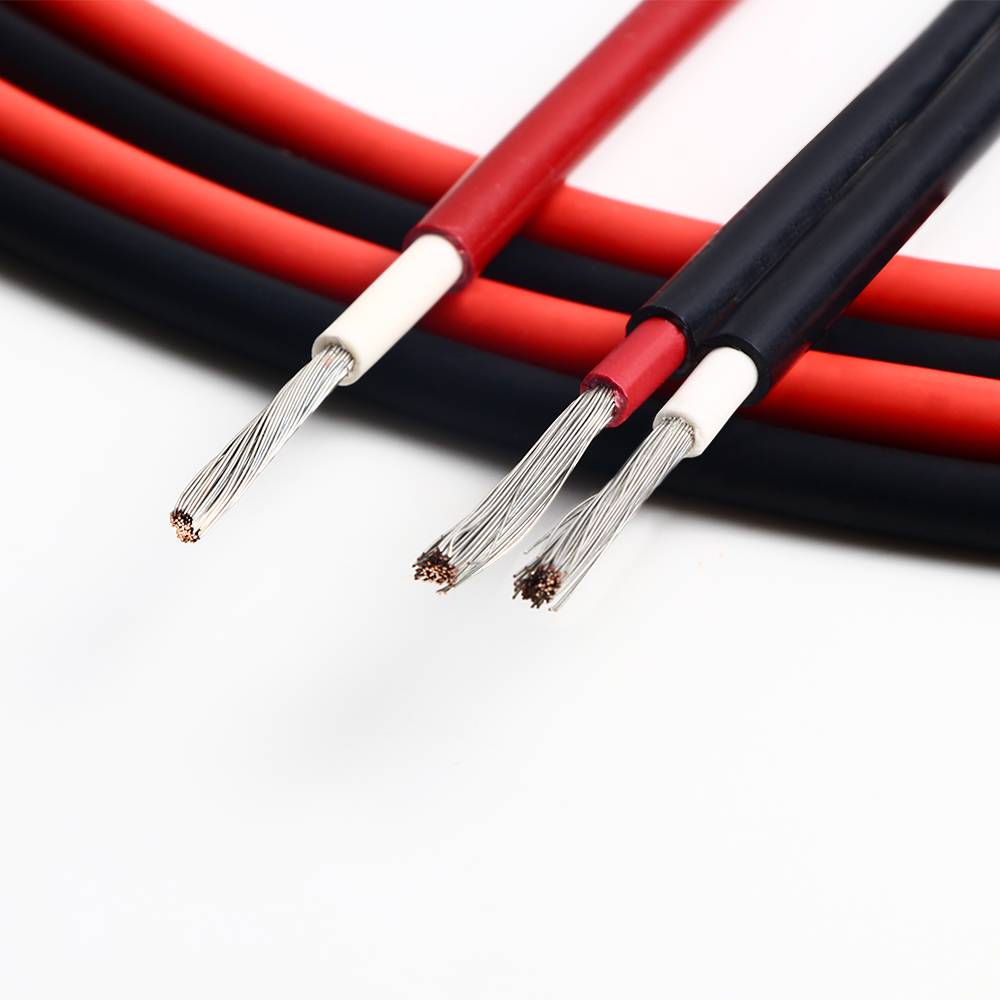

Photovoltaic (PV) cable is a specialized type of wire and cable designed specifically for photovoltaic power generation systems. It is primarily used for transmitting electrical energy between PV modules, inverters, combiner boxes, and other related equipment. These cables are divided into two main categories: DC photovoltaic cable (for connecting module strings) and AC photovoltaic cable (for inverter output to the grid). Their most significant advantages are exceptional weather resistance and stable electrical performance,enabling them to withstand harsh outdoor environments, including high temperatures, intense ultraviolet (UV) radiation, rain, snow, and sandstorms. With a rated voltage ranging from 0.6/1 kV (AC) to 1.8/3 kV (DC), PV cable serves as a core supporting product in the field of new energy.
2. Product Line Specifications & Models
model
voltage class
core
section range
PV1-F
DC 1.8 kV AC 0.6/1 kV
1
1.5~35 mm²
H1Z2Z2-K
DC 1.5 kV AC 1 kV
1/2
1.5~240 mm²
PV1-F
1.8 kV
1
1.5~35 mm²
PV-Q
1.5 kV
1
2.5~35 mm²
PV-EX
1.8 kV
1
2.5~16 mm²
