1. Product Introduction
Engineered for demanding applications, the rubber-sheathed cable is a robust, flexible solution featuring an all-rubber construction (insulation and sheath).It delivers superior flexibility, weather resistance, and mechanical protection, making it ideal for mobile machinery, challenging outdoor conditions, and frequent bending. Supporting voltages from 300/500V to 6/10kV and available in cross-sections from 0.5–240 mm² with a multi-strand copper conductor, this versatile solution is widely employed across industrial, mining, construction, and agricultural sectors.
2. Product Line Specifications & Models
model
full name
voltage class
core
section range
YQ YQW
Light-Duty Rubber-Sheathed Flexible Cable
0.3/0.3 kV
2、3
0.5~6 mm²
YZ YZW
Medium-Duty Rubber-Sheathed Flexible Cable
0.3/0.5 kV
2-6、3+1、3+2
0.75~6 mm²
YZB YZWB

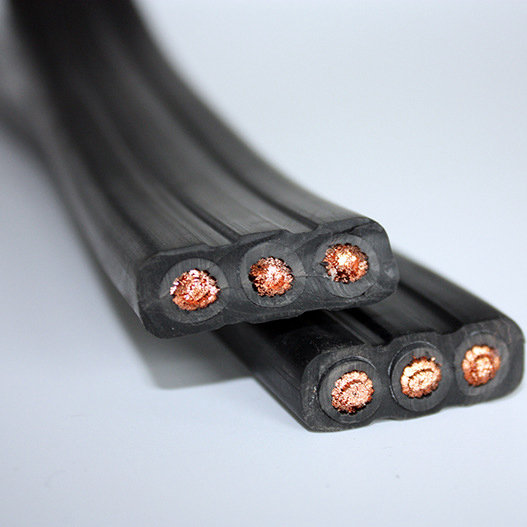

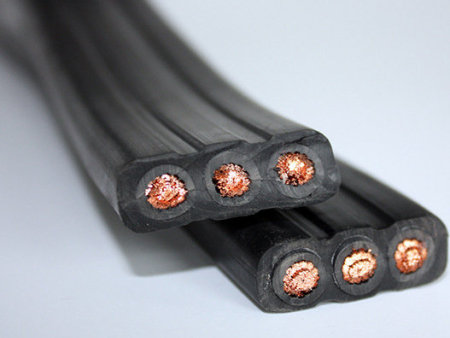

Medium-Duty Rubber-Sheathed Flat Flexible Cable
0.3/0.5 kV
2、3
0.75~6 mm²
YC YCW
Heavy-Duty Rubber-Sheathed Flexible Cable
0.45/0.75 kV
3+1、3+2、4+1
1.5~240 mm²
YH

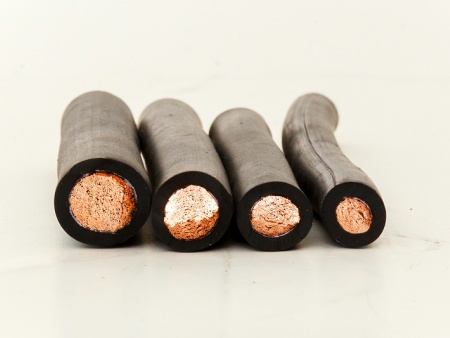

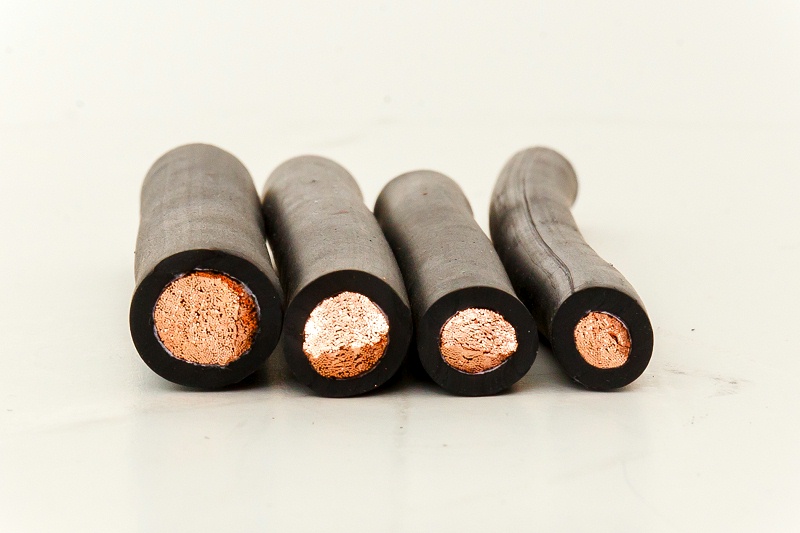

High-Strength Rubber-Sheathed Welder's Cable
0.2 kV
10-95
10~95 mm²
JHS
Waterproof Rubber-Sheathed Flexible Cable
0.3/0.5 kV
1-3
2.5~35 mm²
