1. Product Introduction
A control cable is a type of low-voltage cable, typically rated at 450/750V, dedicated to transmitting control and monitoring signals, as well as equipment commands. Its primary role is to guarantee an uninterrupted command chain within industrial systems, electrical equipment, and automation devices—distinguishing it from power cables that carry electrical energy. These cables are widely employed across various industries, including chemical, metallurgical, power, and rail transit. Key features include precise signal transmission, a wide range of core configurations, excellent interference immunity, broad environmental adaptability, and flexible installation.
2.Product Line Specifications & Models
model
full name
voltage class
core
section range
KVV
Copper Core PVC Insulated PVC Sheathed Control Cable
0.45/0.75 kV
2-61
0.5~10 mm²
KVVR
Stranded Copper Core PVC Insulated PVC Sheathed Flexible Control Cable
0.45/0.75 kV
2-61
0.5~10 mm²

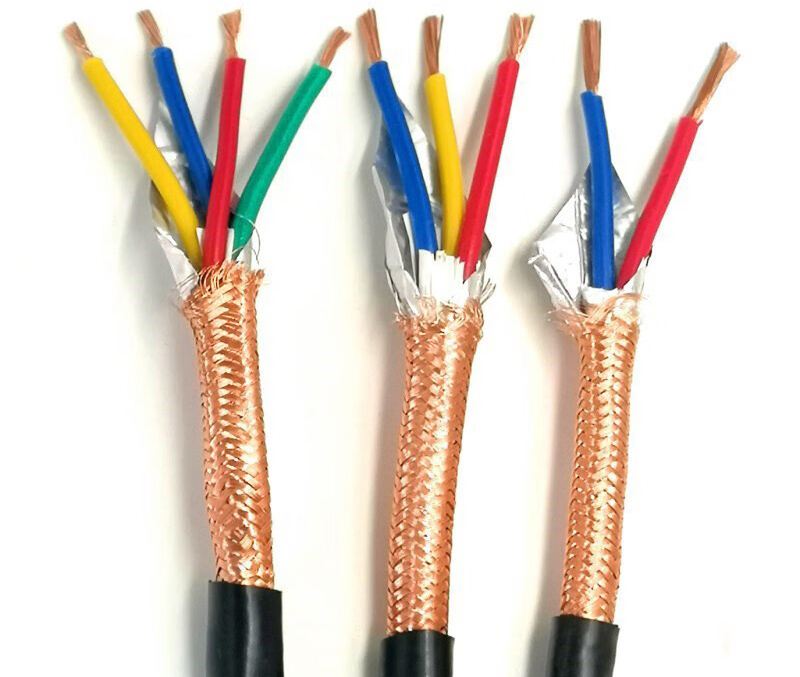

KVVP
Copper Core PVC Insulated PVC Sheathed Tinned/Plain Copper Wire Braided Shielded Control Cable
0.45/0.75 kV
2-61
0.5~10 mm²
KVVP2
Copper Core PVC Insulated PVC Sheathed Copper Tape Shielded Control Cable
0.45/0.75 kV
2-61
0.5~10 mm²
KVV22
Copper Core PVC Insulated PVC Sheathed Steel Tape Armored Control Cable
0.45/0.75 kV
2-61
0.5~10 mm²
KVVP2-22
Copper Core PVC Insulated PVC Sheathed Copper Tape Shielded Steel Tape Armored Control Cable
0.45/0.75 kV
2-61
0.5~10 mm²
KYJV
Copper Core XLPE Insulated PVC Sheathed Control Cable
0.45/0.75 kV
2-61
0.5~10 mm²
WDZ-KYY
Copper Core Halogen-Free Low-Smoke Flame-Retardant (HFLS FR) PE Insulated PE Sheathed Control Cable
0.45/0.75 kV
2-61
0.5~10 mm²
NH-KVVP
Copper Core PVC Insulated PVC Sheathed Copper Wire Braided Shielded Fire-Resistant Control Cable
0.45/0.75 kV
2-61
0.5~10 mm²
