1.Product Introduction

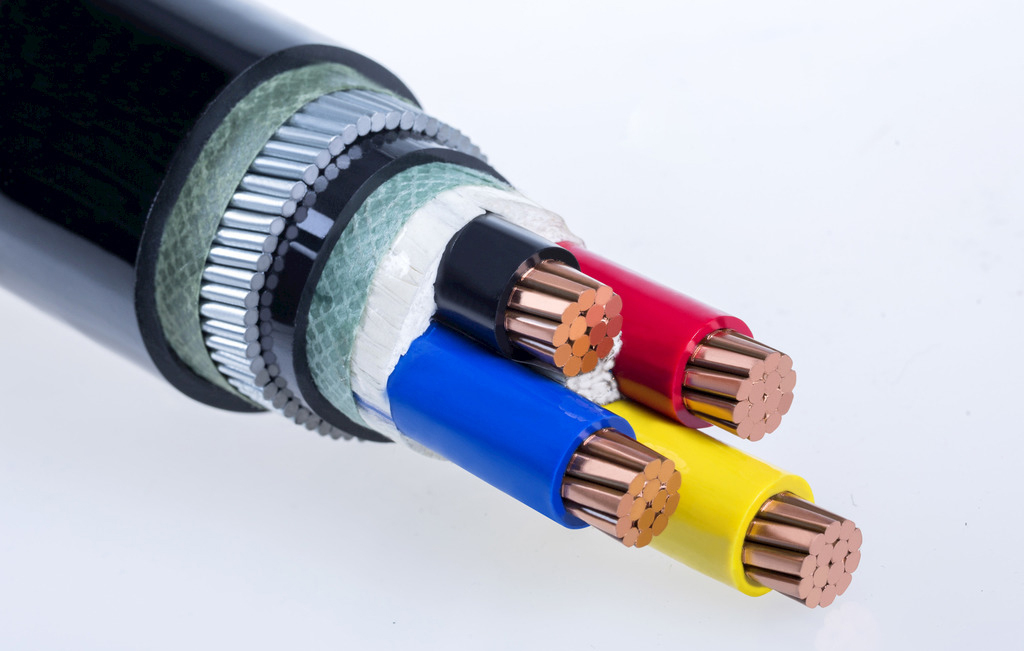

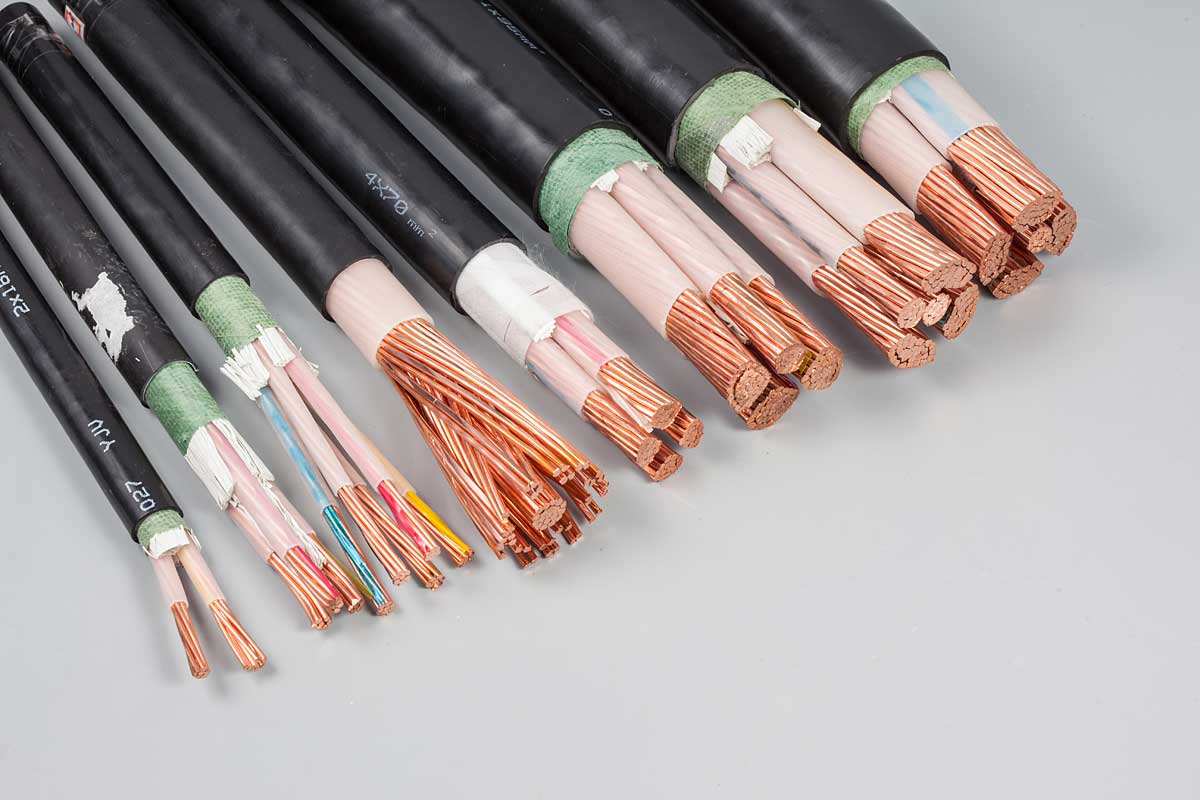

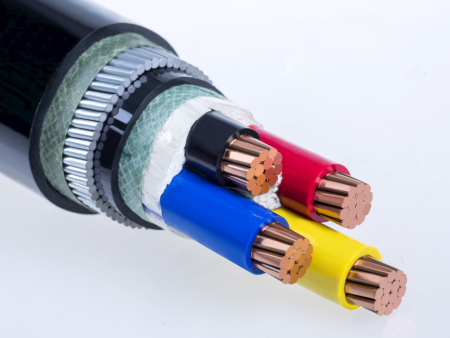

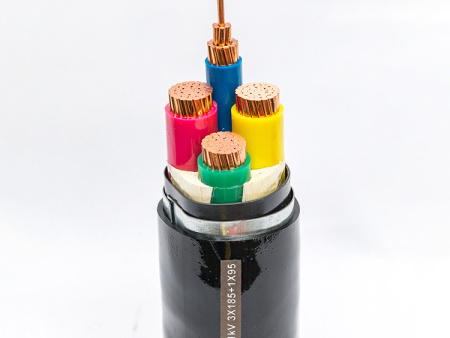

Low-voltage cables are primarily rated at 0.4kV (380V/220V), with a maximum voltage of ≤1kV. The cross-sectional area ranges from 1.5mm² to 400mm². Their core advantages include low cost, flexible installation, and easy maintenance. Compared to medium and high-voltage cables, they feature a simpler structure (with partially simplified shielding layers), making them suitable for short-distance, low-capacity power transmission in civil buildings, industrial production, and municipal facilities.
2.Product Line Specifications & Models
model
full name
voltage class
core
section range
YJV YJLV
XLPE Insulated PVC Sheathed Power Cable
0.6/1 kV
1-5
1.5~800 mm²
YJV22 YJLV22
XLPE Insulated Steel Tape Armored PVC Sheathed Power Cable
0.6/1 kV
1-5
1.5~800 mm²
YJV32 YJLV32
XLPE Insulated Fine Steel Wire Armored PVC Sheathed Power Cable
0.6/1 kV
1-5
1.5~800 mm²
VV VLV
PVC Insulated PVC Sheathed Power Cable
0.6/1 kV
1-5
1.5~800 mm²
VV22 VLV22
PVC Insulated Steel Tape Armored PVC Sheathed Power Cable
0.6/1 kV
1-5
1.5~800 mm²
WDZ-YJY
Halogen-Free Low-Smoke Flame-Retardant (HFLS FR) XLPE Insulated PE Sheathed Power Cable
0.6/1 kV
1-5
1.5~800 mm²
NH-YJV
Fire-Resistant XLPE Insulated PVC Sheathed Power Cable
0.6/1 kV
1-5
1.5~800 mm²
ZR-YJV
Flame-Retardant XLPE Insulated PVC Sheathed Power Cable
0.6/1 kV
1-5
1.5~800 mm²
