1. Product Introduction
High-voltage cables, as the vital "blood vessels" of modern power systems, are closely linked to the advancement of energy revolutions. Selecting the appropriate high-voltage cable requires a comprehensive consideration of factors such as voltage levels, installation environments, and load characteristics to ensure safety, reliability, and cost-effectiveness. They are primarily used in various power transmission and distribution scenarios, including inter-regional backbone transmission, urban distribution network construction, substation interconnection, onshore/offshore wind power, photovoltaic power plants, energy storage stations, airports, high-speed rail stations, and more.
2. Product Line Specifications & Models
model
full name
voltage class
芯
core
section range
YJV
YJLV
XLPE Insulated PVC Sheathed Power Cable
3.6/6 kV
1、3
10~630 mm²

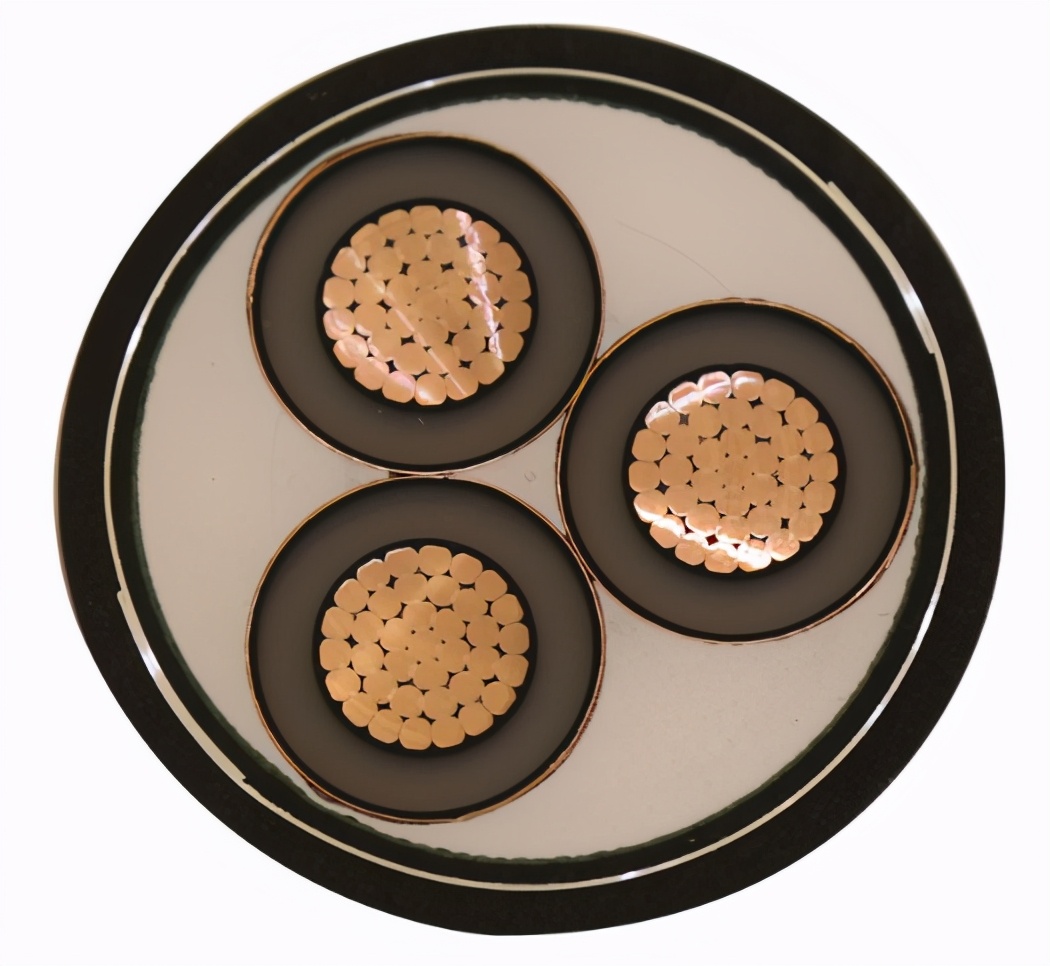

YJV22 YJLV22
Cu or Al core, XLPE insulated, PVC sheathed and steel tape armoured power cable
7.5/15 kV
26/35 kV
3
25~630 mm²
YJV32 YJLV32
Copper or Aluminum Conductor, XLPE Insulated, Fine Steel Wire Armored, PVC Sheathed Power Cable
7.5/15 kV
26/35 kV
1、3
25~630 mm²
YJV42 YJLV42
Copper or Aluminum Conductor, XLPE Insulated, Thick Steel Wire Armored, PVC Sheathed Power Cable
7.5/15 kV
26/35 kV
1、3
25~630 mm²
YJLW02 YJLLW02
XLPE Insulated, Corrugated Aluminum Sheathed, PVC Jacketed Power Cable
66~110 kV
1
400~2500 mm²
